Dwyer 靜壓配件系列
配 件
代理品牌：Dwyer

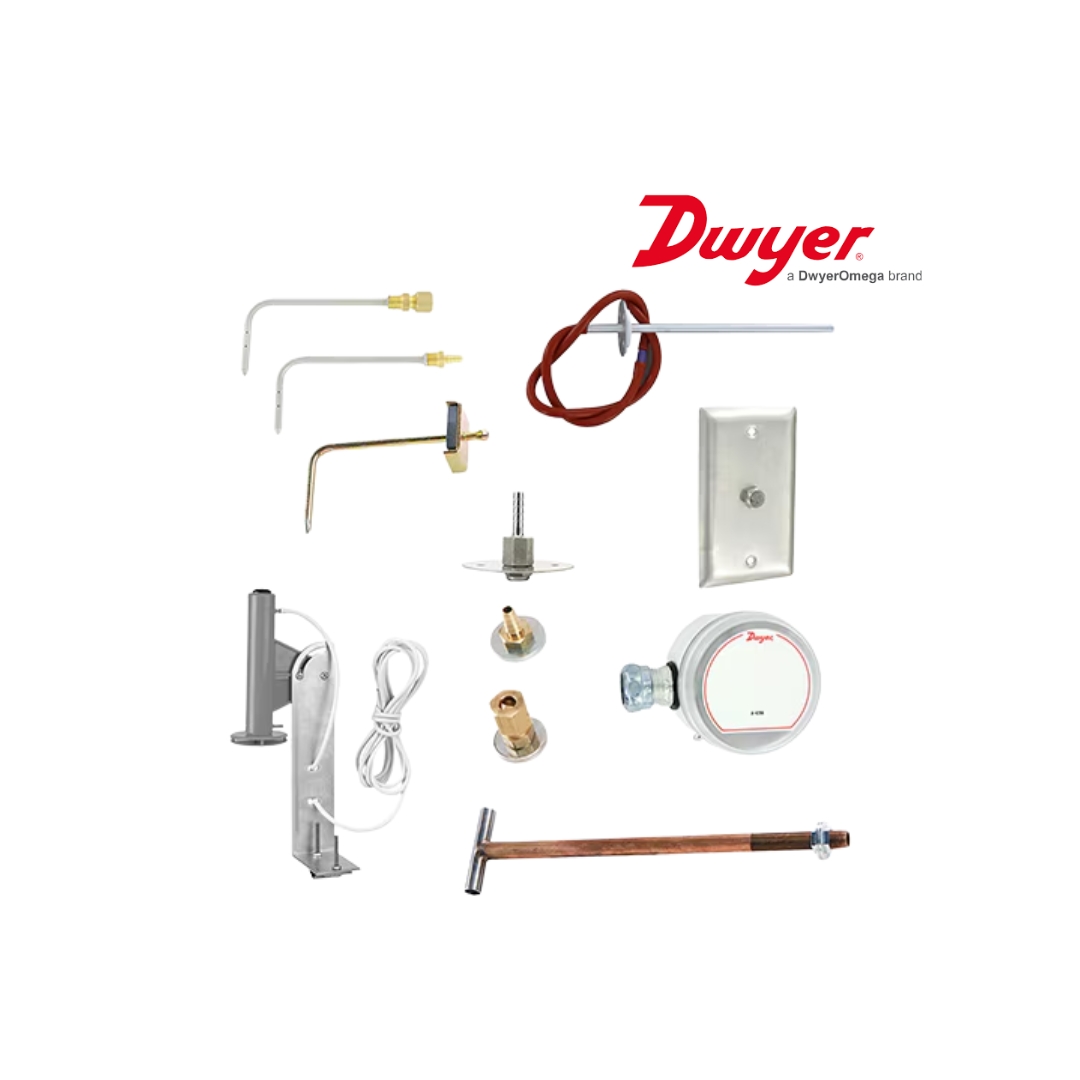

Dwyer 靜壓配件系列
Dwyer 靜壓測量頭系列提供多種安裝選項，包含室內牆面、天花板、無塵室專用不鏽鋼濾網型、室外防陣風型及風管探針型。能有效擷取靜壓並平滑壓力波動，確保感測器讀數穩定精準。【貝鑫科技-Dwyer唯一指定專業總代理 提供專業選型與現貨供應】
簡介

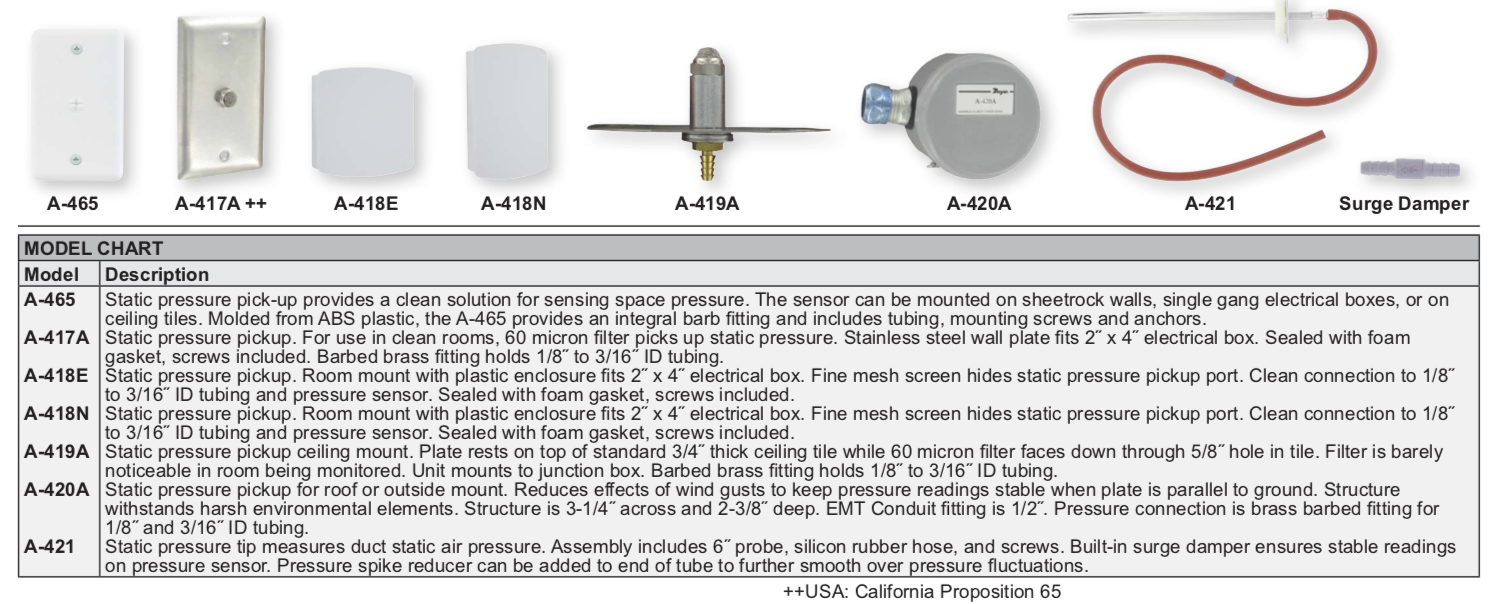

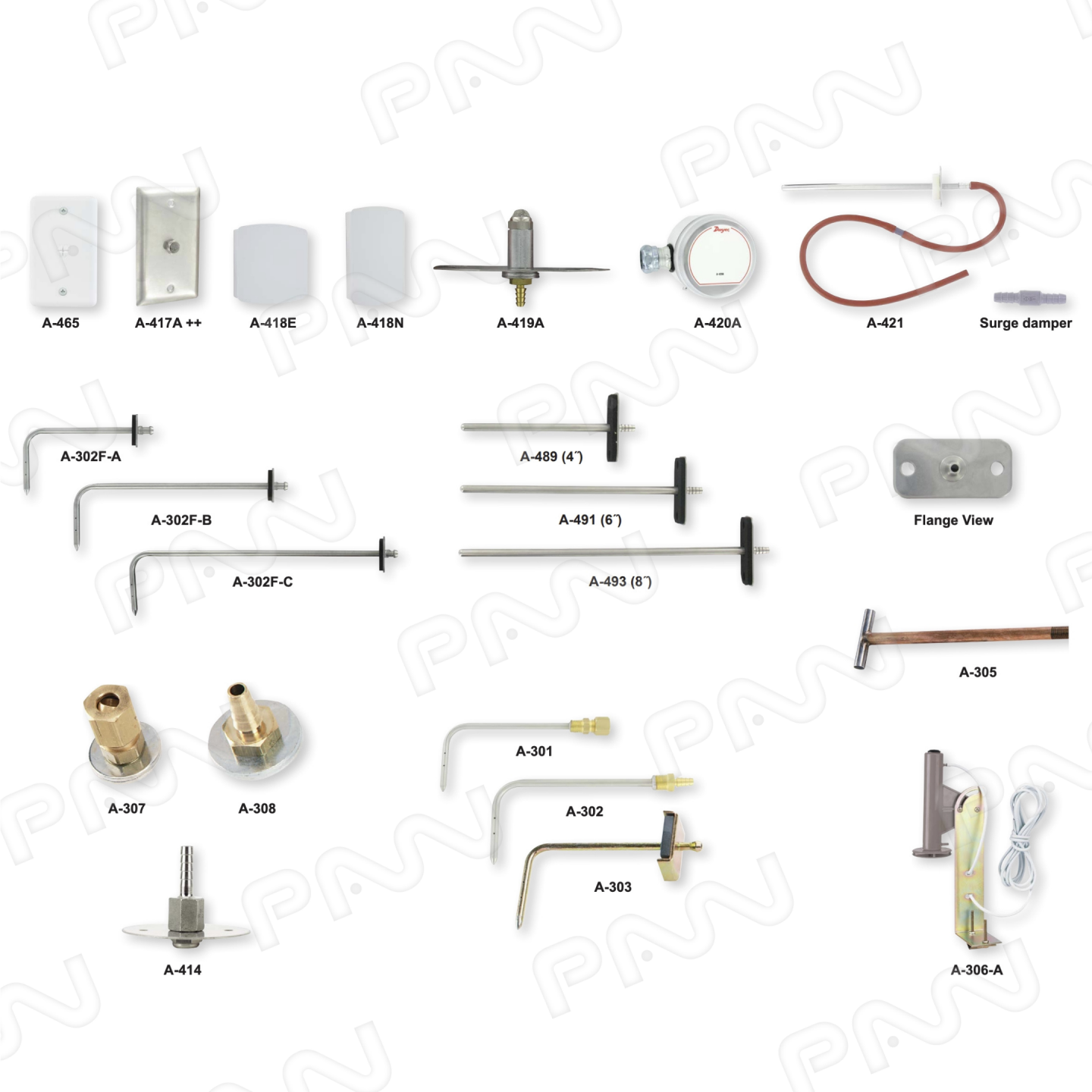

A-465：靜壓測量頭，為感測空間壓力提供了一個俐落的解決方案。該感測器可安裝在石膏板牆、單聯電氣盒（開關盒）或天花板隔音板上，A-465 採用 ABS 塑膠一體成型，具備倒刺接頭，並隨附管路、安裝螺絲與錨栓。
A-417A：靜壓測量頭，專為無塵室使用而設計，透過 60 微米濾網來擷取靜壓，不鏽鋼壁板適用於 2" x 4" 電氣盒，採用泡棉墊片密封，並隨附螺絲，黃銅倒刺接頭可連接 1/8" 至 3/16" 內徑（ID）的管路。
A-418E：靜壓測量頭，配備塑膠外殼的室內安裝型，適用於 2" x 4" 電氣盒，細密網罩完美隱藏了靜壓測量埠，提供與 1/8" 至 3/16" 內徑管路及壓力感測器的乾淨連接，採用泡棉墊片密封，並隨附螺絲。
A-418N：靜壓測量頭，配備塑膠外殼的室內安裝型，適用於 2" x 4" 電氣盒，細密網罩完美隱藏了靜壓測量埠，提供與 1/8" 至 3/16" 內徑管路及壓力感測器的乾淨連接，採用泡棉墊片密封，並隨附螺絲。
A-419A：天花板安裝型靜壓測量頭，面板放置於標準 3/4" 厚的天花板隔音板上方，而 60 微米濾網則朝下穿過板上 5/8" 的孔洞，濾網在被監控的室內幾乎不易察覺，設備可安裝於接線盒上，黃銅倒刺接頭可連接 1/8" 至 3/16" 內徑的管路。
A-420A：屋頂或室外安裝型靜壓測量頭，當面板與地面平行時，能減少陣風的影響，以保持壓力讀數的穩定。堅固的結構能抵禦惡劣的環境因素，結構寬度為 3-1/4"，深度為 2-3/8"，配有 1/2" 的 EMT 導管接頭，壓力連接端為黃銅倒刺接頭，適用於 1/8" 及 3/16" 內徑的管路。
A-421：靜壓測量探針，用於測量風管內的靜態空氣壓力，套件包含 6" 探針、矽膠軟管與螺絲，內建的突波阻尼器可確保壓力感測器上的讀數穩定，管路末端還可加上壓力尖峰減緩器，以進一步平滑壓力波動。

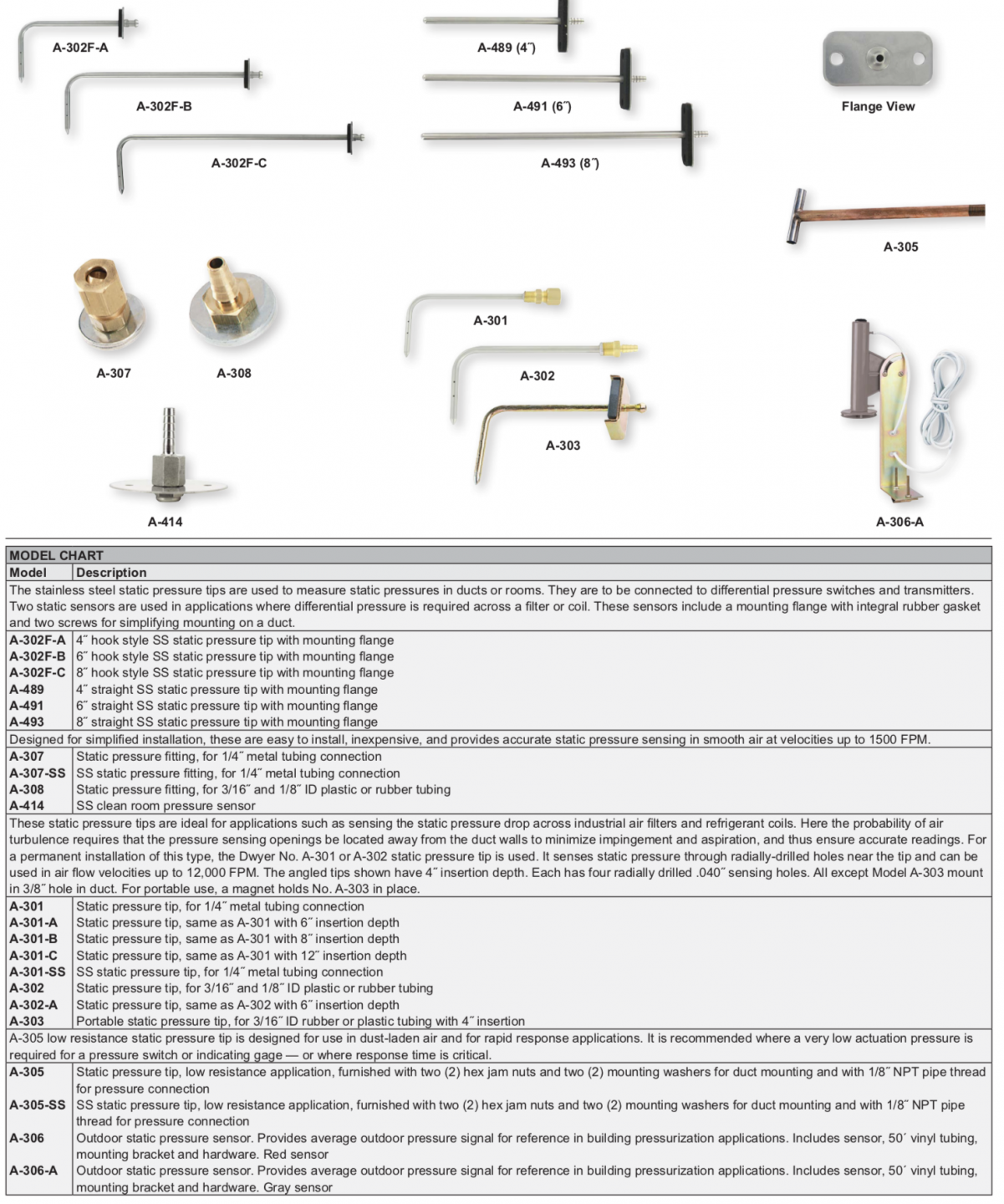

A-302F-A：4˝ hook style SS static pressure tip with mounting flange
A-302F-B：6˝ hook style SS static pressure tip with mounting flange
A-302F-C：8˝ hook style SS static pressure tip with mounting flange
A-489：4˝ straight SS static pressure tip with mounting flange
A-491：6˝ straight SS static pressure tip with mounting flange
A-493：8˝ straight SS static pressure tip with mounting flange
A-307：Static pressure fitting, for 1/4˝ metal tubing connection
A-307-SS：SS static pressure fitting, for 1/4˝ metal tubing connection
A-308：Static pressure fitting, for 3/16˝ and 1/8˝ ID plastic or rubber tubing
A-414：SS clean room pressure sensor
A-301：Static pressure tip, for 1/4˝ metal tubing connection
A-301-A：Static pressure tip, same as A-301 with 6˝ insertion depth
A-301-B：Static pressure tip, same as A-301 with 8˝ insertion depth
A-301-C：Static pressure tip, same as A-301 with 12˝ insertion depth
A-301-SS：SS static pressure tip, for 1/4˝ metal tubing connection
A-302：Static pressure tip, for 3/16˝ and 1/8˝ ID plastic or rubber tubing
A-302-A：Static pressure tip, same as A-302 with 6˝ insertion depth
A-303：Portable static pressure tip, for 3/16˝ ID rubber or plastic tubing with 4˝ insertion
A-305：Static pressure tip, low resistance application, furnished with two (2) hex jam nuts and two (2) mounting washers for duct mounting and with 1/8˝ NPT pipe thread for pressure connection
A-305-SS：SS static pressure tip, low resistance application, furnished with two (2) hex jam nuts and two (2) mounting washers for duct mounting and with 1/8˝ NPT pipe thread for pressure connection
A-306：Outdoor static pressure sensor. Provides average outdoor pressure signal for reference in building pressurization applications. Includes sensor, 50´ vinyl tubing, mounting bracket and hardware. Red sensor
A-306-A：Outdoor static pressure sensor. Provides average outdoor pressure signal for reference in building pressurization applications. Includes sensor, 50´ vinyl tubing, mounting bracket and hardware. Gray sensor
A-465：靜壓測量頭，為感測空間壓力提供了一個俐落的解決方案。該感測器可安裝在石膏板牆、單聯電氣盒（開關盒）或天花板隔音板上，A-465 採用 ABS 塑膠一體成型，具備倒刺接頭，並隨附管路、安裝螺絲與錨栓。
A-417A：靜壓測量頭，專為無塵室使用而設計，透過 60 微米濾網來擷取靜壓，不鏽鋼壁板適用於 2" x 4" 電氣盒，採用泡棉墊片密封，並隨附螺絲，黃銅倒刺接頭可連接 1/8" 至 3/16" 內徑（ID）的管路。
A-418E：靜壓測量頭，配備塑膠外殼的室內安裝型，適用於 2" x 4" 電氣盒，細密網罩完美隱藏了靜壓測量埠，提供與 1/8" 至 3/16" 內徑管路及壓力感測器的乾淨連接，採用泡棉墊片密封，並隨附螺絲。
A-418N：靜壓測量頭，配備塑膠外殼的室內安裝型，適用於 2" x 4" 電氣盒，細密網罩完美隱藏了靜壓測量埠，提供與 1/8" 至 3/16" 內徑管路及壓力感測器的乾淨連接，採用泡棉墊片密封，並隨附螺絲。
A-419A：天花板安裝型靜壓測量頭，面板放置於標準 3/4" 厚的天花板隔音板上方，而 60 微米濾網則朝下穿過板上 5/8" 的孔洞，濾網在被監控的室內幾乎不易察覺，設備可安裝於接線盒上，黃銅倒刺接頭可連接 1/8" 至 3/16" 內徑的管路。
A-420A：屋頂或室外安裝型靜壓測量頭，當面板與地面平行時，能減少陣風的影響，以保持壓力讀數的穩定。堅固的結構能抵禦惡劣的環境因素，結構寬度為 3-1/4"，深度為 2-3/8"，配有 1/2" 的 EMT 導管接頭，壓力連接端為黃銅倒刺接頭，適用於 1/8" 及 3/16" 內徑的管路。
A-421：靜壓測量探針，用於測量風管內的靜態空氣壓力，套件包含 6" 探針、矽膠軟管與螺絲，內建的突波阻尼器可確保壓力感測器上的讀數穩定，管路末端還可加上壓力尖峰減緩器，以進一步平滑壓力波動。
A-302F-A：4˝ hook style SS static pressure tip with mounting flange
A-302F-B：6˝ hook style SS static pressure tip with mounting flange
A-302F-C：8˝ hook style SS static pressure tip with mounting flange
A-489：4˝ straight SS static pressure tip with mounting flange
A-491：6˝ straight SS static pressure tip with mounting flange
A-493：8˝ straight SS static pressure tip with mounting flange
A-307：Static pressure fitting, for 1/4˝ metal tubing connection
A-307-SS：SS static pressure fitting, for 1/4˝ metal tubing connection
A-308：Static pressure fitting, for 3/16˝ and 1/8˝ ID plastic or rubber tubing
A-414：SS clean room pressure sensor
A-301：Static pressure tip, for 1/4˝ metal tubing connection
A-301-A：Static pressure tip, same as A-301 with 6˝ insertion depth
A-301-B：Static pressure tip, same as A-301 with 8˝ insertion depth
A-301-C：Static pressure tip, same as A-301 with 12˝ insertion depth
A-301-SS：SS static pressure tip, for 1/4˝ metal tubing connection
A-302：Static pressure tip, for 3/16˝ and 1/8˝ ID plastic or rubber tubing
A-302-A：Static pressure tip, same as A-302 with 6˝ insertion depth
A-303：Portable static pressure tip, for 3/16˝ ID rubber or plastic tubing with 4˝ insertion
A-305：Static pressure tip, low resistance application, furnished with two (2) hex jam nuts and two (2) mounting washers for duct mounting and with 1/8˝ NPT pipe thread for pressure connection
A-305-SS：SS static pressure tip, low resistance application, furnished with two (2) hex jam nuts and two (2) mounting washers for duct mounting and with 1/8˝ NPT pipe thread for pressure connection
A-306：Outdoor static pressure sensor. Provides average outdoor pressure signal for reference in building pressurization applications. Includes sensor, 50´ vinyl tubing, mounting bracket and hardware. Red sensor
A-306-A：Outdoor static pressure sensor. Provides average outdoor pressure signal for reference in building pressurization applications. Includes sensor, 50´ vinyl tubing, mounting bracket and hardware. Gray sensor
| Dwyer 靜壓配件系列 Accessories 完整型錄下載 |
Dwyer 靜壓配件系列 Tips 操作手冊下載 |
 |
|
